- Description
This 10kw/12.5kVA diesel standby generator is ideal for home or business standby use.
The Hyundai twin cylinder air-cooled engine operates at a low noise level within the sound attenuating enclosure.

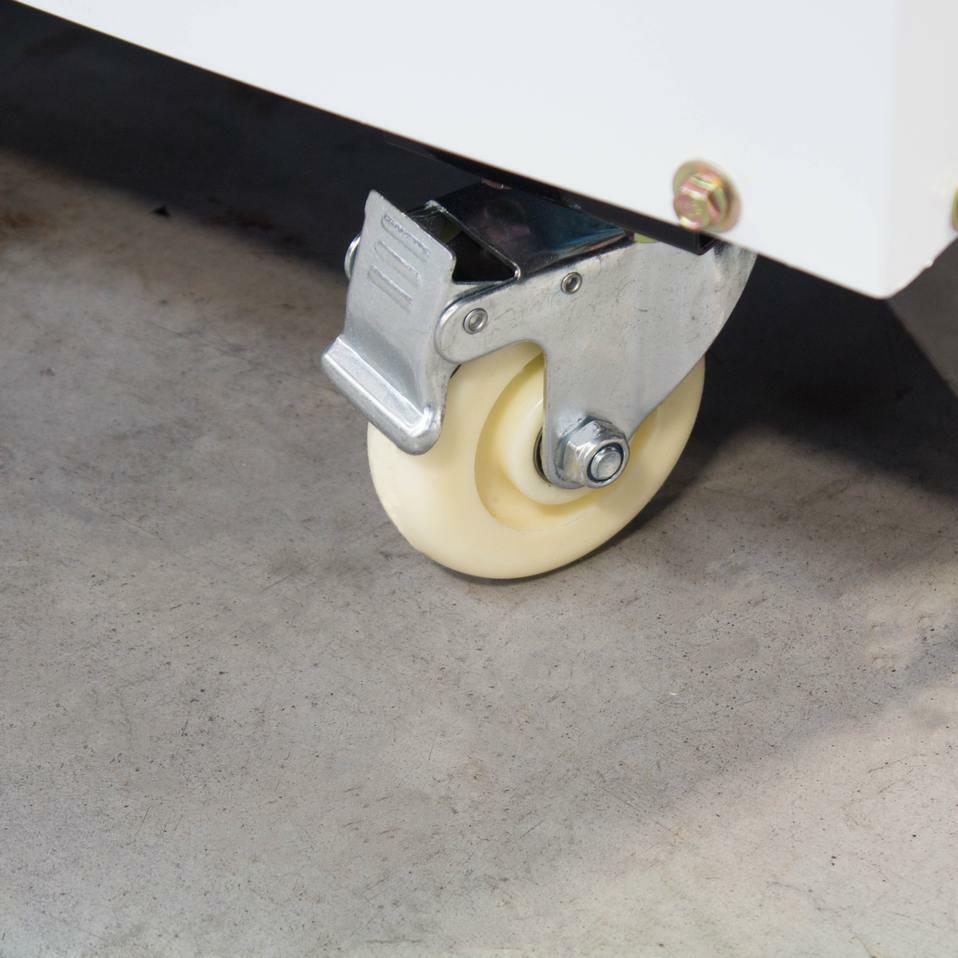

Mounted on 4 wheels, (2 steerings with brake and 2 fixed) it is easily moved on a flat surface.
The control panel features a digital panel to display volts, hours, frequency, 32A and 63amp sockets at 230v mains voltage, emergency stop button, overload breakers, ATS/2-wire socket and a 12v DC output.
The AVR alternator provides a smooth 230v mains power output and the high torque diesel engine ensures maximum economy and low emissions with minimum fluctuation in rpm as heavy loads are applied.
The long run 60 litre base mounted fuel tank will give up to 18 hours run time under ¼ load.
With key start, two wire start and ATS options, it is the ideal generator for the large home or small business standby in the event of a power failure.
For the recommended usage of this generator, please see here.Please note, this is a 3000rpm generator, ideal for backup power in the event of a power cut, or for powering a workshop for example. For more frequent use, or if running for extended periods of time every day (prime power) you should purchase a 1500rpm water-cooled, slow running generator that has a much longer lifespan. For more details on the recommended usage of 3000rpm or 1500rpm generators, please see here.SpecificationsModel DHY12500SE Rated/Prime kVA* 10 Rated/Prime kW 10 Max/Standby kVA* 11 Max/Standby kW 11 Phase Single Voltage 230 Connection Method(s) Sockets - 1 x 32A, 1 x 63A Rated Speed (RPM) 3000 Frequency (Hz) 50 Max/Continuous Current (Amps) 47.83/43.48 Power Factor (Cosφ) 47.83/43.48 Fuel Type Diesel Fuel Tank (Litres) 50 Runtime (Hours) @ 100% Load 12 Noise Level @ 1m 75%81.5 load (dB) 81.5 Noise Level @ 7m 75% load (dB) 70 Hyundai Diesel Engine Model HY290F Power Output (hp) 20 Engine Displacement (CC) 954 No. of Cylinders 2 Recommended Oil Type 15w40 / 10w40 Oil Capacity (Litres) 3 Oil Filter Part No. 3049050901800 Aspiration Natural Fuel Regulation/Governor System Mechanical Fuel Consumption (100% Load) [Litres] - Fuel Filter Part No. 3049051001000 Cooling Forced Air-Cooled Alternator Model - Breakers Yes Brushless With Brush Voltage Regulation AVR Air Filter Part No. 3049050700303 Net Weight (kg) 270 Gross Weight (kg) 290 Wheel Kit? Yes Dimensions L x W x H (mm) 1175 x 695 x 1050 Battery (Ah) 45 ATS / MTS Compatible Yes Control Panel HJ-103A Engine Warranty (years) 2 Accessories - Model EAN 600231973526 - Delivery
There may be an additional charge for delivery of items outside UK mainland and offshore addresses; under these circumstances, please contact us for an updated quote on delivery before placing your order. Further payment may still be required for larger items – Please get in touch with us and we can arrange an updated invoice to reflect this. Your purchase with us will be held and stock allocated.
This includes Scotland, the Highlands and Islands, Northern Ireland, the Isle of Wight and the Isle of Man.
Postcodes including (but not limited to) DD, PH, IV, KW, HS, AB, PA, KA, ML, EH, KY, FK PO (PO – Isle of Wight) and G.
If access to the delivery address is restricted, please advise when placing the order. This will allow us to arrange for a suitably sized delivery vehicle. The customer is responsible for arranging for large items to be offloaded from the delivery vehicle at the customer’s premises. Please allow up to 10 working days for delivery.
Our suppliers arrange delivery at the source, so carriage charges may vary based on your postcode. We will happily provide you with a delivery quote; just call us on 01722 442446.
Next-Day Delivery is not Guaranteed – The order Cut-off for Qualifying next-day delivery addresses is 3pm. But please contact us as some orders can still be fulfilled after this time.
