GRAF OneAdvanced 50PE Sewage Treatment Plant

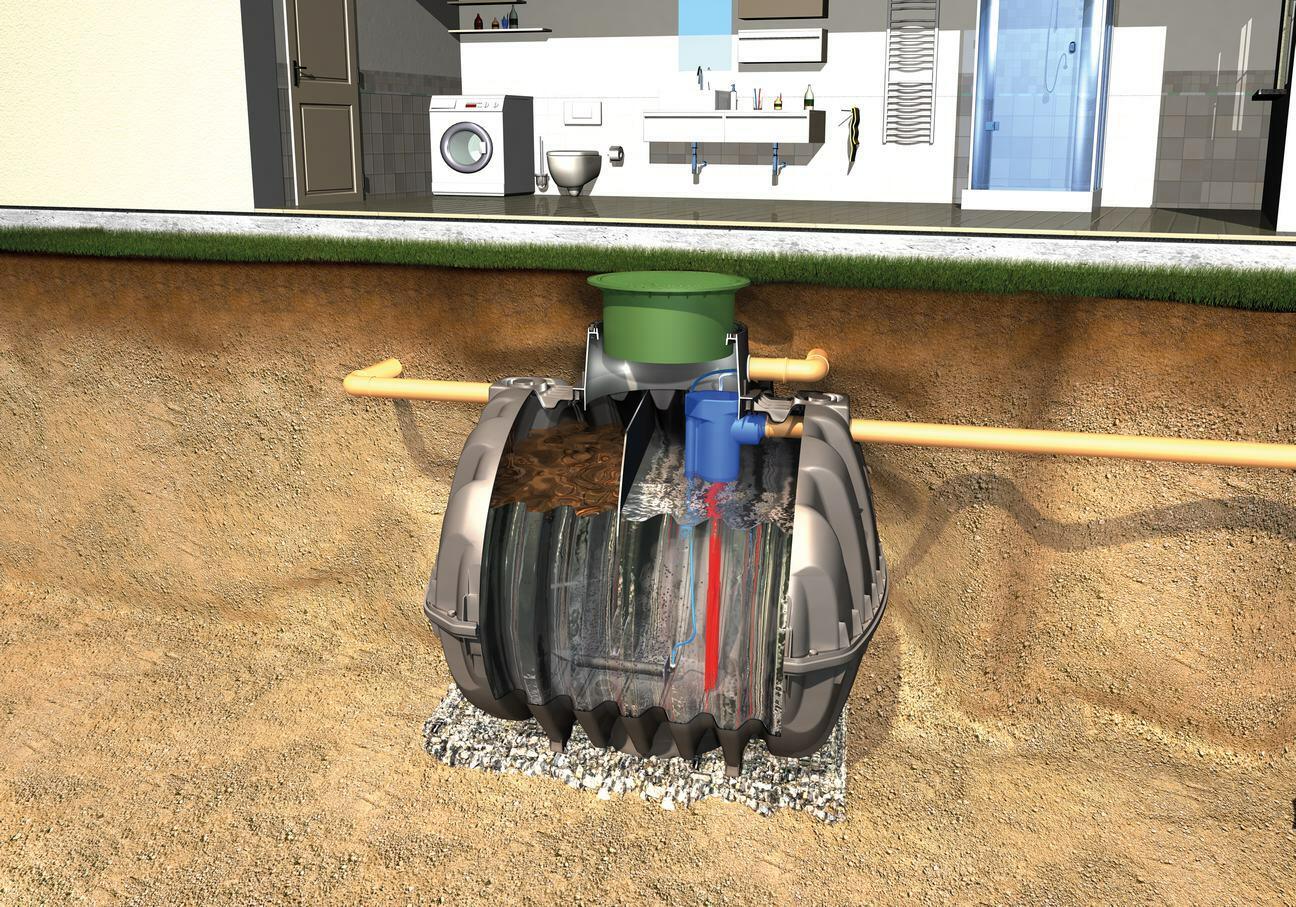

The GRAF OneAdvanced 50PE sewage treatment plant (formerly One2Clean Advanced) is a high-capacity system for larger homes, commercial sites and complex developments serving up to 50 people. This configuration is supplied as a single Carat XXL 38000L tank, handling a maximum daily flow of 7500 litres across a working volume of 38000 litres.

Advanced, scalable SBR treatment

OneAdvanced builds on proven Sequencing Batch Reactor technology with an upgraded control panel and an additional primary treatment stage, delivering excellent effluent quality that can be tuned to meet the strictest discharge consents. The modular design scales from 10PE to 1000PE, so treatment lines can be added as a project grows or shut down to cope with seasonal load changes. Energy use starts from just 0.95kWh per day.

Key features

• Treats wastewater for up to 50 people (7500L/day)
• Supplied as single Carat XXL 38000L tank
• Modular, scalable SBR design from 10PE to 1000PE

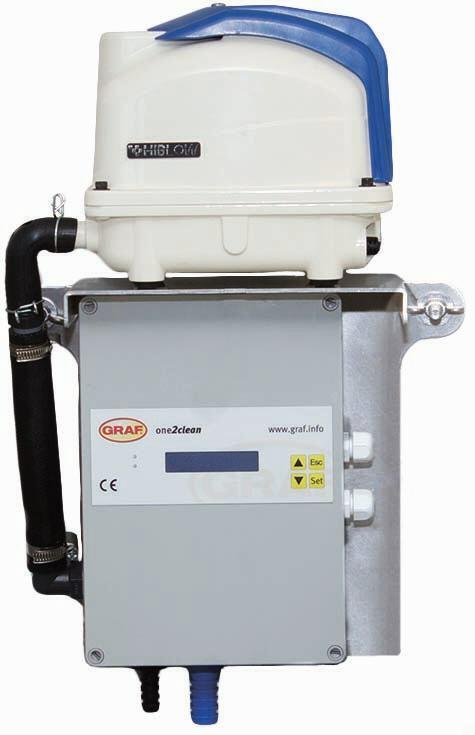

• Advanced control panel with add-on modules for tighter limits
• Energy-efficient operation from 0.95kWh per day
• No moving parts inside the tank

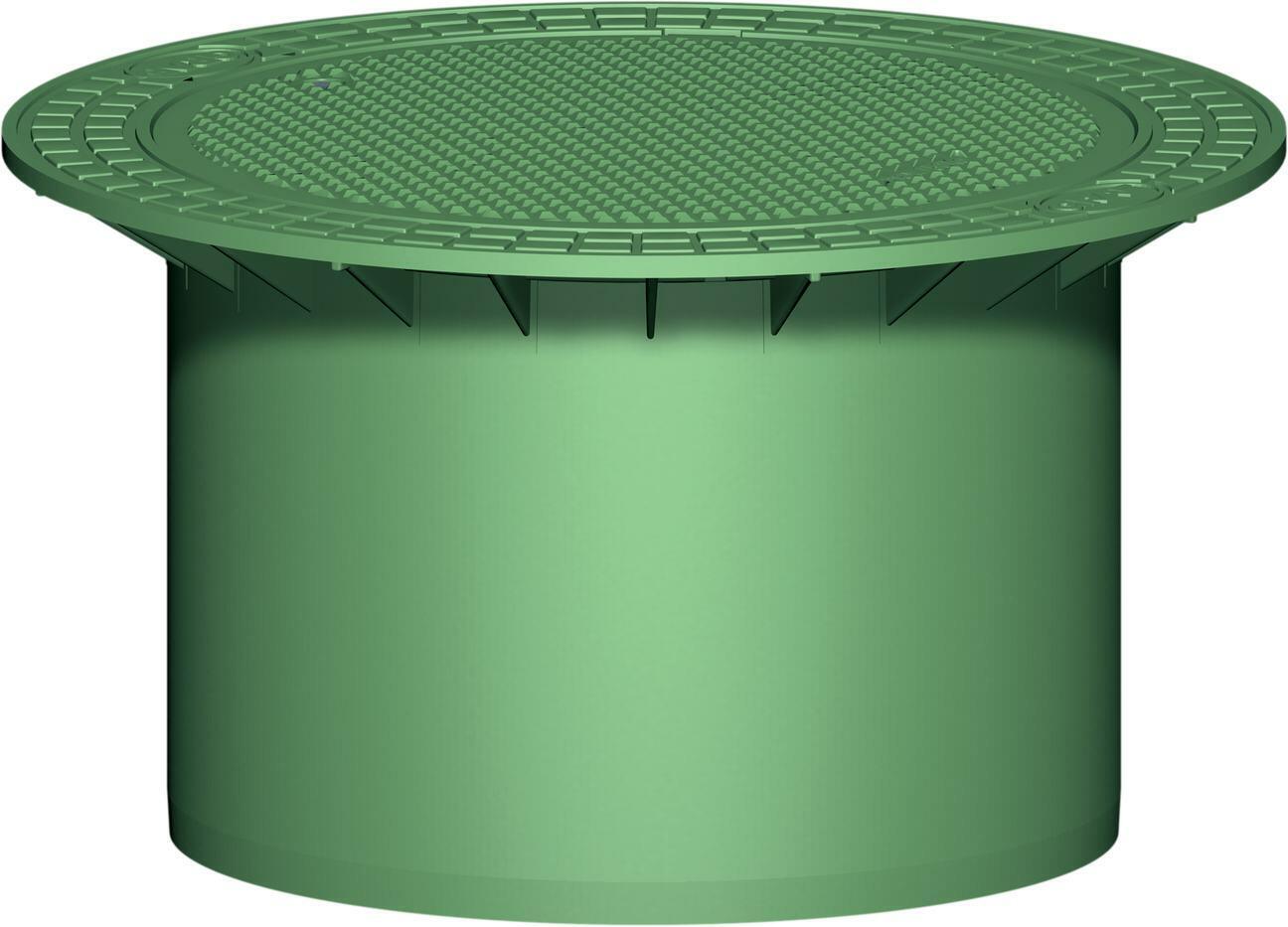

• Integrated sampling chamber and flush-to-ground lid
• PIA certified to BS EN 12566-3

Specification

• Population equivalent: up to 50 people
• Maximum daily flow: 7500 litres/day
• Working volume: 38000 litres
• Tank configuration: single Carat XXL 38000L tank
• Energy use: from 0.95kWh/day
• Process: advanced multi-stage SBR
• Certification: BS EN 12566-3, PIA type-tested

Optional upgrades and compliance

Plug-and-play upgrades - including phosphate removal, denitrification, carbon dosing, UV or chlorine disinfection, a pumped outlet and remote WebMonitor monitoring - allow the OneAdvanced 50PE to be configured for nutrient-neutrality schemes and demanding environmental consents. All treatment is certified to BS EN 12566-3.

Applications and Usage

The OneAdvanced 50PE suits larger residential schemes, holiday parks, pubs, hotels, schools, workplaces and rural businesses that need dependable, high-quality treatment. The single Carat XXL tank keeps a large-capacity plant compact on site, while GRAF's bespoke design team can tailor the system to challenging commercial projects such as breweries, distilleries and dairies. GRAF UK provides lifetime project support and a free commissioning service through its accredited GRAFter service network.
