Atlantis 30000 Litre Steel Bunded Diesel Tank

Atlantis 30,000 Litre steel bunded diesel tank. Bunded to 110% capacity, BS799 pt5 compliant, 10-year warranty. Suitable for DERV & Gas Oil. Pump options available.

Atlantis 30000 Litre Steel Bunded Diesel Tank
SKU: TAN.DIS-30000
Atlantis Tanks Logo
  • Enquire About Stock or Availability

    Your Full Name*

    Postcode For Delivery*

    Your Phone Number*

    Your Email Address*

    Your Enquiry*

    Got a Technical Question About This Product?

  • Description
    Atlantis 30,000 Litre Steel Bunded Diesel Tank – TAN.DIS-30000
    Tank & Bund:

    The Atlantis 30,000 Litre StoraFuel steel bunded diesel tank is a heavy-duty commercial dispenser designed for demanding construction and agricultural environments. Diesel is held in a primary inner vessel while the fully welded outer tank provides bunded containment at 110% of the inner capacity — meeting Environment Agency requirements for secondary containment.

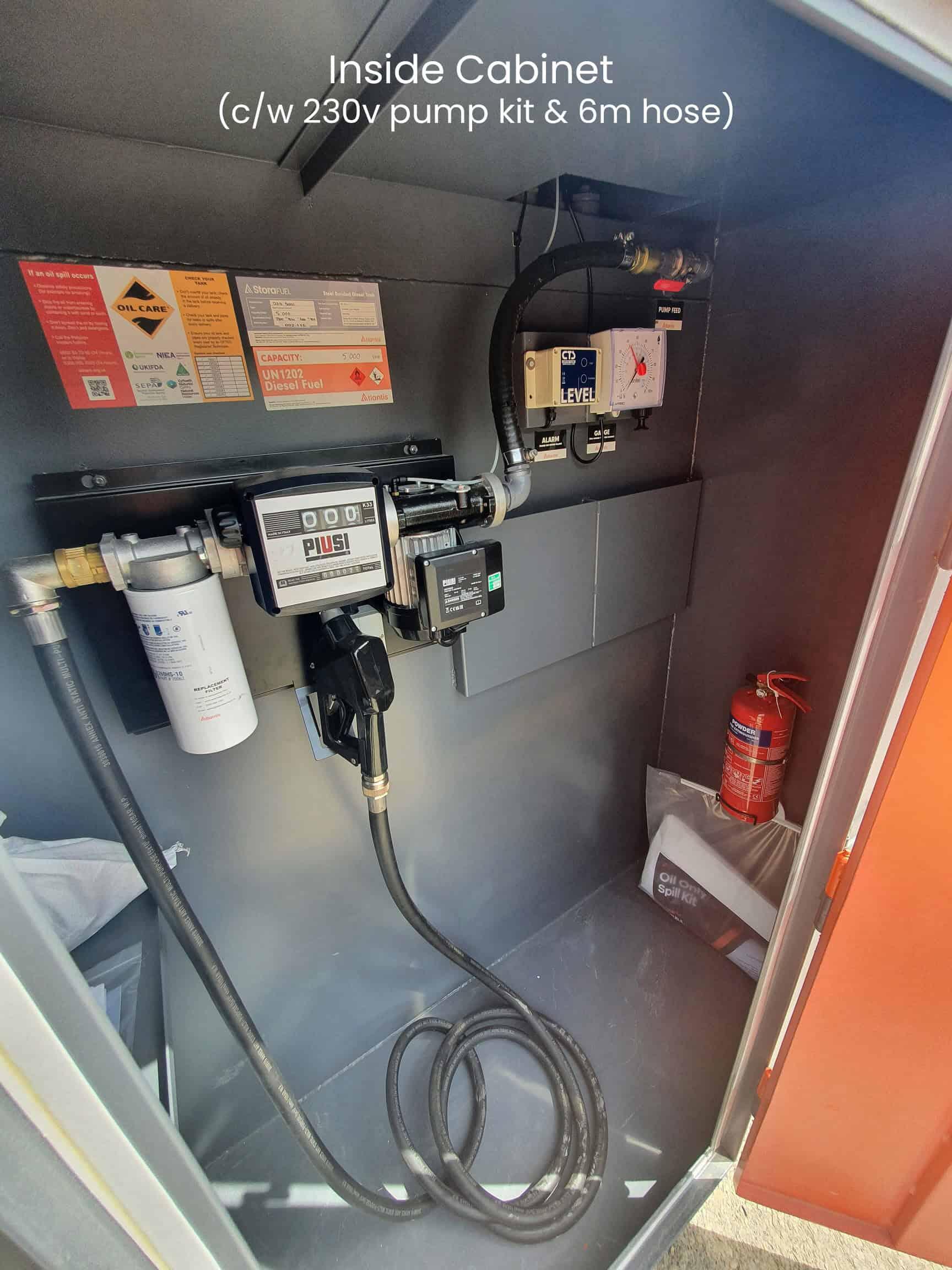

    Compatible with both DERV (white diesel) and Gas Oil (red diesel), the tank ships with a front-mounted security cabinet, lockable swing door, hydrostatic contents gauge, battery-powered overfill alarm, pre-serviced powder fire extinguisher, and a 15-litre spill kit as standard.

    Standard Fittings:
    • Front-mounted lockable security cabinet (optional roller shutter door)
    • 2″ fill point inside cabinet with lever ball valve, non-return valve & drip tray
    • 2″ tank-to-bund vent & 2″ bund-to-atmosphere vent
    • 1.5″ pump feed, 2 × 1.5″ tank sockets and 1 × 1.5″ bund socket (inside cabinet)
    • Hydrostatic gauge, battery overfill alarm, powder fire extinguisher & spill kit
    • Full-width bearer frame with 4 × lifting eyes
    • Internal tank bracing, manufactured to BS799 pt5
    • Material: Steel to BS EN 10025-2:2004 S275JR
    • 10-year tank warranty
    Finish:

    Surface prep ST2. Zinfos 340WS anti-corrosive topcoat at 75 microns DFT. Main tank: RAL 7015 Slate Grey; cabinet door: RAL 2001 Orange. Alternative colours available on request.

    Dimensions:
    • Length: TBC
    • Width: TBC
    • Height: TBC (including bearers)
    • Weight (empty): TBC

    This tank is designed as a static installation and must be sited on a level, non-combustible surface. Not certified for transport when containing fuel.

  • Guides & Specification Sheets
    Optional Extras:

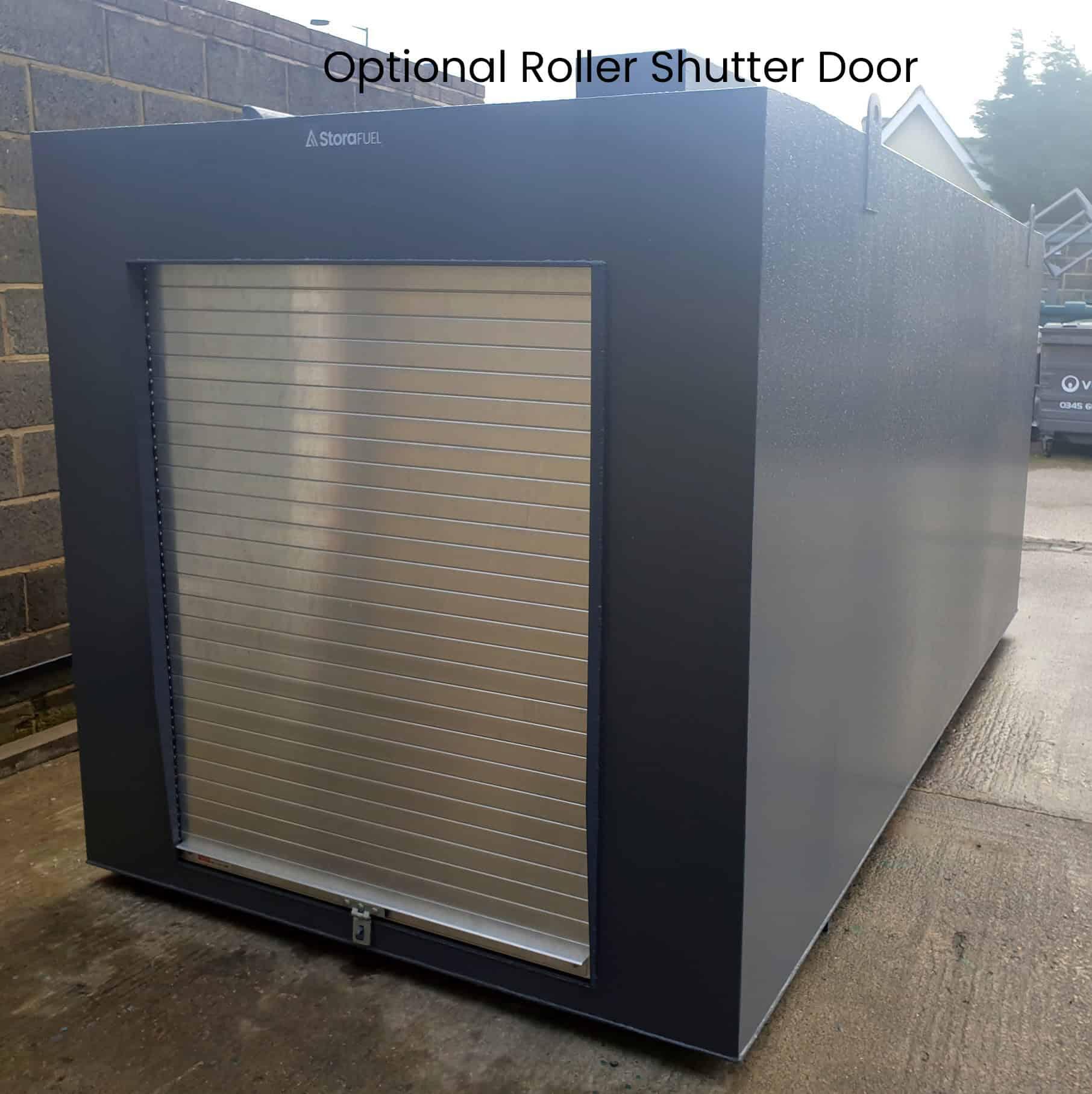

    • Roller Shutter Door
    • Manway Access Hatch
    • Generator Feed & Return Sockets
    • Mesh Floor (inside cabinet)

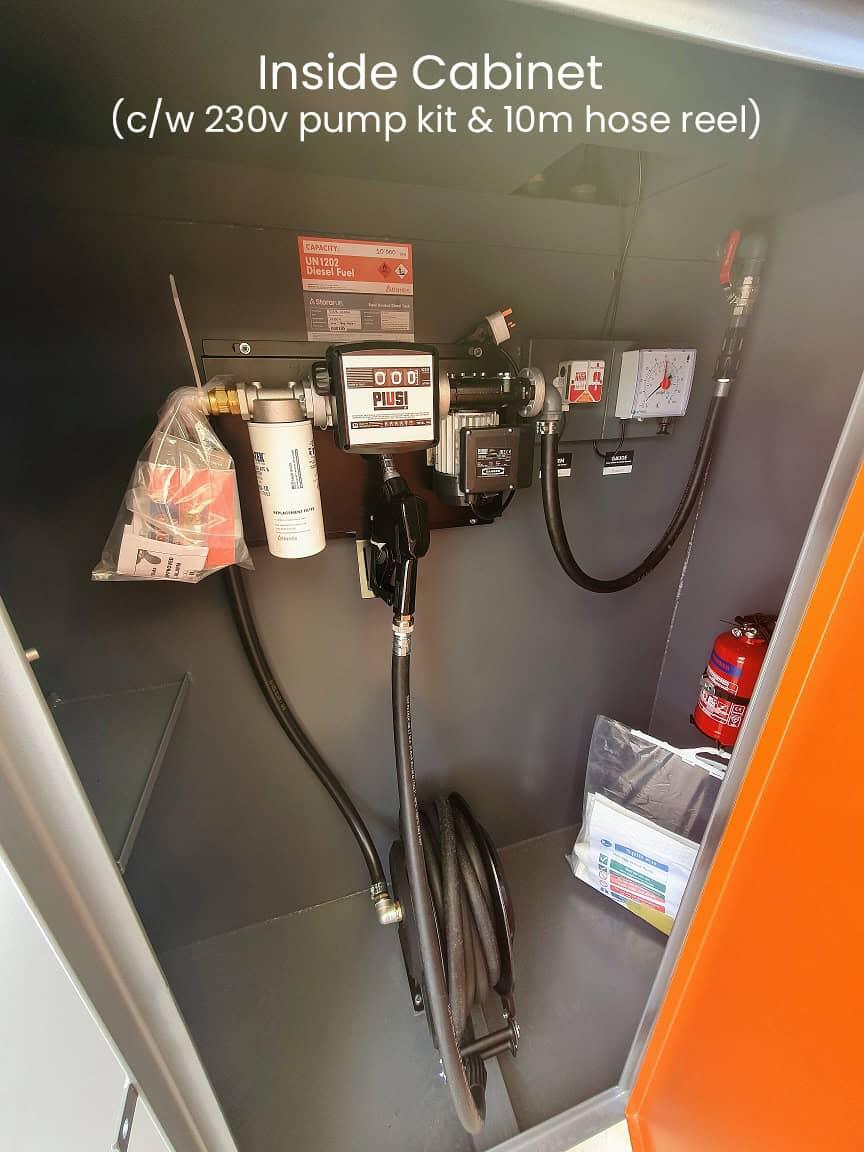

    • Hose Reel (10m × 1″ diesel hose)
    Pump Options (PIUSI Premium):
    • 50 LPM 230v | 70 LPM 230v | 100 LPM 230v | 50 LPM 110v | 75 LPM 12v | 75 LPM 24v
    Pump Options (HYTEK Economy):
    • 40 LPM 12v | 40 LPM 24v

    All electric pump kits include 6m hose, 10-micron water & particle filter, auto nozzle and mechanical flow meter. Compatible with most fuel management systems — contact us to discuss your requirements.
