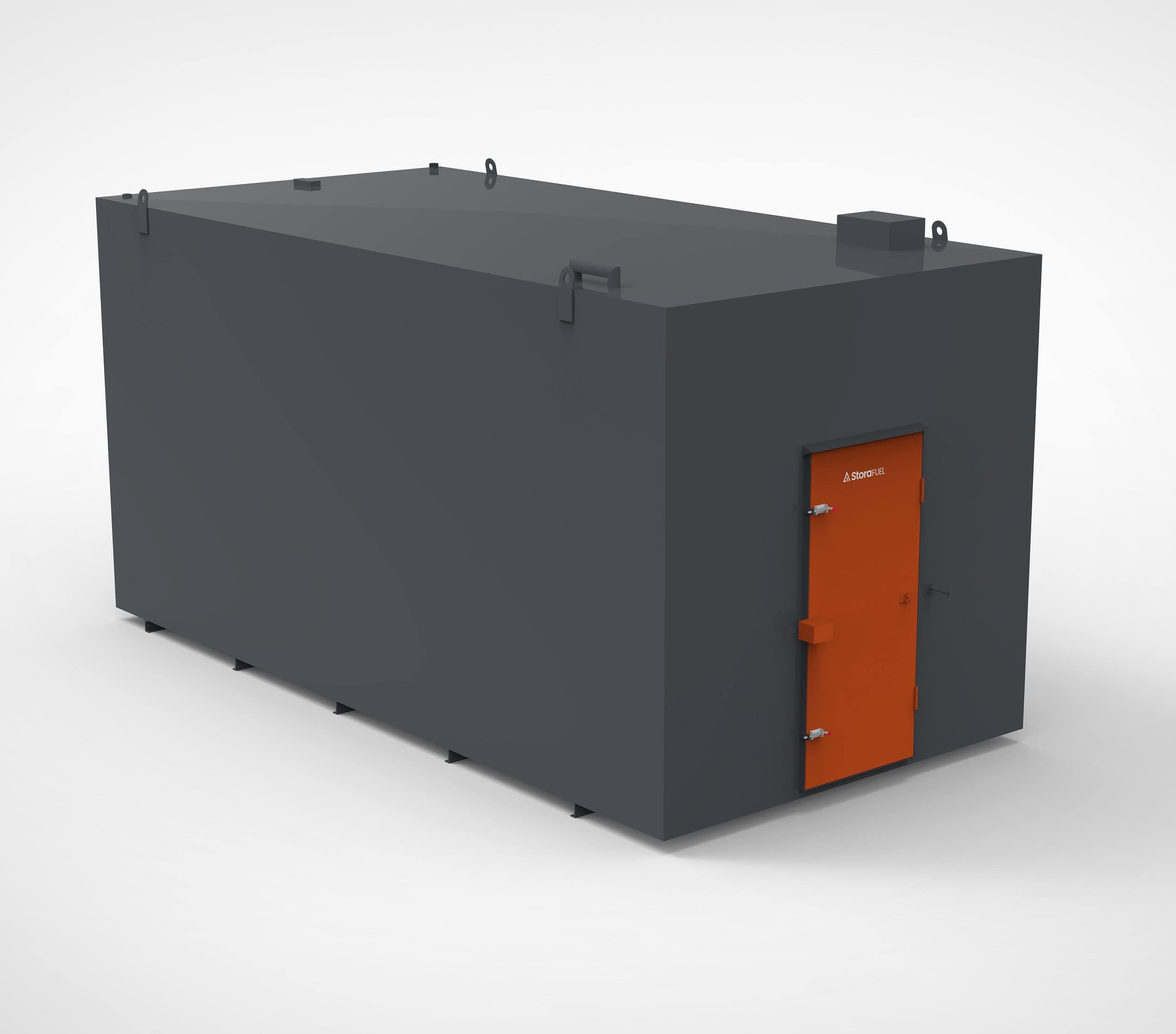

    18000 Litre Steel Bunded Diesel Tank – DIS.18000
    Tank & Bund:

    An 18000-litre steel bunded diesel tank dispenser which is suitable for commercial applications. This tank is well suited for the construction and agricultural industry.

    The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity which makes this tank suitable for both domestic and commercial installations. This tank is suitable for the storage of Derv (white diesel) or Gas Oil (red diesel). A bunded tank is a tank within a tank, the outer tank provides protection for the inner tank which therefore makes it harder for the inner tank to fail. However, in the unlikely event of the inner tank failing, the outer tank will provide secondary containment.

    Compliance:

    This tank is made in accordance with BS799 pt5

    Specifications:
    • 18’000 litre (3960 galls) capacity
    • Security cabinet – front mounted
    • Lockable cabinet swing door (optional roller shutter door available)
    • 2″ fill point inside cabinet, c/w lever ball valve, non return valve & drip tray
    • 2″ tank to bund vent
    • 2″ bund to atmosphere vent
    • 1.5″ pump feed (inside cabinet)
    • 2 no 1.5″ tank sockets (inside cabinet)
    • 1 no 1.5″ bund socket
    • Hydrostatic gauge
    • Overfill alarm (battery powered)
    • Powder fire extinguisher (pre-serviced)
    • 15 litre spill kit
    • Mounted on full width bearers
    • 4 x lifting eyes (for lifting when empty)
    • Internal tank bracing
    • This tank is made in accordance with BS799pt5
    • Material: Steel to BS EN 10025-2:2004 S275JR
    • Outer tank forms the required bund, with capacity for 110% of the total liquid being stored.
    • 10 year tank warranty
    Finish:
    • Surface preparation ST2. We then apply a Zinfos 340WS solvent borne high performance anti-corrosive one coat system, multi surface self-priming mid sheen topcoat (50% gloss). Applied to give a wet film thickness of 150 microns and dry film thickness of 75 microns.
    • Main Tank – RAL 7015 Grey
    • Door – RAL 2001 Orange
    • Other colours can be requested
    Equipment Options:
    • Roller Shutter Door
    • Manway Access Hatch
    • Generator Feed & Return Sockets
    • Mesh Floor (inside the cabinet)
    • Hose Reel (10m x 1″ diesel hose)

    Premium Pumps: (PIUSI Pumps)

    • 50LPM 230v Pump Kit
    • 70LPM 230v Pump Kit
    • 100LPM 230v Pump Kit
    • 50LPM 110v Pump Kit
    • 45LPM 12v Pump Kit
    • 45LPM 24v Pump Kit
    • Fuel Management System (£POA)

    Economy Pumps: (HYTEK Pumps)

    • 45 LPM 230v Pump Kit
    • 75 LPM 230v Pump Kit

    Electric Pump Kits, supplied with:

    • 6m Hose, Water & Particle Filter (10micron), Auto Nozzle & Mechanical Flow Meter
    Dimensions:
    • Length: 4825mm
    • Width: 2500mm
    • Height: 2100mm (including bearers)
    • Weight: 3500kg (empty)
    Warranty:
    • Tank – 10 years
    • Pumps & Components – 1 year

    Please note: This tank is designed as a static tank and is not certified to be transported when full of fuel. It also should be situated on a non-combustible even and level terrain/surface.
